感應加熱用 高壓諧振軸向系列
★特點
□阻燃邁拉膠帶封裝、阻燃環氧灌封
□具有耐壓高、過電流能力強、溫升低、頻率特性好
□等效串聯電阻小、雜散電感低
★應用場合
□廣泛應用于商用/工業感應加熱，以及各類電力電子設備中作諧振電容使用
★技術要求
引用標準 | GB/3984，IEC60110 |
氣候類別 | 40/105/21 |
工作溫度范圍（外殼） | -40℃～105℃ |
電壓范圍 | 1000VDC～4000VDC |
容量范圍 | 0.01μF～10μF |
容量允許偏差 | ±5%（J）/±10%（K） |
損耗角正切值 | 10×10-4 |
耐電壓 | 1.5Un（60S，20±5℃） |
絕緣電阻 | ≥5000S(500VDC,60S) |
過電壓 | 1.1Un30%ofon-load-dur.·0 |
1.15Un30min/day | |
1.2Un5min/day | |
1.3Un1min/day | |
最高使用海拔 | 2000m |
預期壽命 | 20000h（Un，θhs=70℃） |
失效率 | 50FIT |
備注：如果海拔使用高度超過2000m，應該考慮海拔對對流冷卻和外絕緣的影響
★技術參數
PCB插板式1600VDC | ||||||||

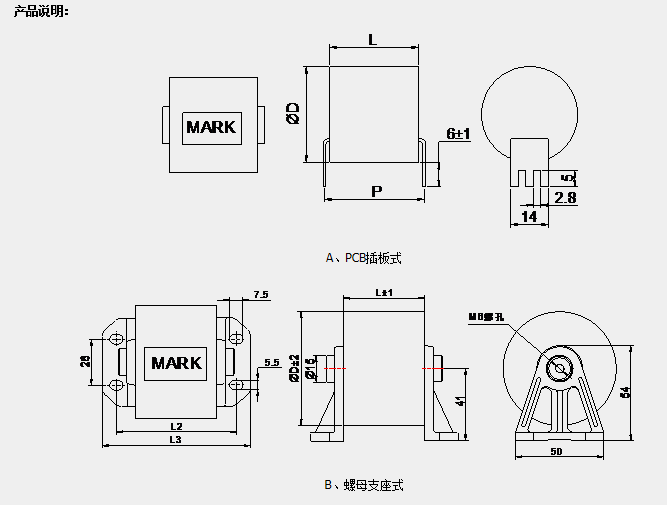

Cn (μF) | Dimension(mm) | Irms@70℃@100KHz（A） | dv/dt (V/μs) | Ipeak (A) | ESR@10KHz (mΩ) | Partnumber | ||
D | L | P | ||||||
0.20 | 30 | 30 | 34 | 20 | 1000 | 200 | 23 | 1GRY420D1600-01 |
0.30 | 35 | 30 | 34 | 30 | 1000 | 300 | 16 | 1GRY430D1600-01 |
0.33 | 37 | 30 | 34 | 30 | 1000 | 330 | 15 | 1GRY433D1600-01 |
0.35 | 38 | 30 | 34 | 30 | 1000 | 350 | 14 | 1GRY435D1600-02 |
0.36 | 39 | 30 | 34 | 30 | 1000 | 360 | 13.5 | 1GRY436D1600-01 |
0.40 | 40 | 30 | 34 | 35 | 1000 | 400 | 12 | 1GRY440D1600-01 |
0.43 | 42 | 30 | 34 | 35 | 1000 | 430 | 11 | 1GRY443D1600-01 |
0.44 | 44 | 30 | 34 | 35 | 1000 | 440 | 10.5 | 1GRY447D1600-01 |
0.50 | 45 | 30 | 34 | 35 | 1000 | 500 | 9.5 | 1GRY450D1600-01 |
0.53 | 46 | 30 | 34 | 35 | 1000 | 530 | 9.0 | 1GRY453D1600-01 |
0.54 | 47 | 30 | 34 | 40 | 1000 | 540 | 8.5 | 1GRY454D1600-01 |
0.60 | 48 | 30 | 34 | 40 | 1000 | 600 | 8.0 | 1GRY460D1600-02 |
0.70 | 53 | 30 | 34 | 45 | 1000 | 700 | 7.0 | 1GRY470D1600-02 |
PCB插板式2 000VDC | ||||||||
Cn (μF) | Dimension(mm) | Irms@70℃@100KHz（A） | dv/dt (V/μs) | Ipeak (A) | ESR@10KHz (mΩ) | Partnumber | ||
D | L | P | ||||||
0.20 | 30 | 30 | 34 | 20 | 1000 | 200 | 23 | 1GRY420D2000-- |
0.30 | 35 | 30 | 34 | 30 | 1000 | 300 | 16 | 1GRY430D2000-- |
0.33 | 37 | 30 | 34 | 30 | 1000 | 330 | 15 | 1GRY433D2000-- |
0.35 | 38 | 30 | 34 | 30 | 1000 | 350 | 14 | 1GRY435D2000-- |
0.36 | 39 | 30 | 34 | 30 | 1000 | 360 | 13.5 | 1GRY436D2000-- |
0.40 | 40 | 30 | 34 | 35 | 1000 | 400 | 12 | 1GRY440D2000-- |
0.43 | 42 | 30 | 34 | 35 | 1000 | 430 | 11 | 1GRY443D2000-- |
0.44 | 44 | 30 | 34 | 35 | 1000 | 440 | 10.5 | 1GRY447D2000-- |
0.50 | 45 | 30 | 34 | 35 | 1000 | 500 | 9.5 | 1GRY450D2000-- |
0.53 | 46 | 30 | 34 | 35 | 1000 | 530 | 9.0 | 1GRY453D2000-- |
0.54 | 47 | 30 | 34 | 40 | 1000 | 540 | 8.5 | 1GRY454D2000-- |
0.60 | 48 | 30 | 34 | 40 | 1000 | 600 | 8.0 | 1GRY460D2000-- |
0.70 | 53 | 30 | 34 | 45 | 1000 | 700 | 7.0 | 1GRY470D2000-- |
PCB插板式3 000VDC | ||||||||
Cn (μF) | Dimension(mm) | Irms@70℃@100KHz（A） | dv/dt (V/μs) | Ipeak (A) | ESR@10KHz (mΩ) | Partnumber | ||
D | L | P | ||||||
0.10 | 47 | 40 | 44 | 35 | 1200 | 120 | 23 | 1GRY410D3000-02 |
0.22 | 31 | 40 | 44 | 25 | 1200 | 264 | 21 | 1GRY422D3000-03 |
0.35 | 38 | 40 | 44 | 30 | 1200 | 420 | 13.5 | 1GRY435D3000-01 |
0.40 | 41 | 40 | 44 | 35 | 1200 | 480 | 12 | 1GRY440D3000-02 |
0.47 | 45 | 40 | 44 | 40 | 1200 | 564 | 10 | 1GRY447D3000-01 |
0.54 | 47 | 40 | 44 | 40 | 1200 | 648 | 9.0 | 1GRY454D3000-01 |
0.65 | 52 | 40 | 44 | 45 | 1200 | 780 | 8.0 | 1GRY465D3000-01 |
螺母支座式3 000VDC | |||||||||
Cn (μF) | Dimension(mm) | Irms@70℃@100KHz（A） | dv/dt (V/μs) | Ipeak (A) | ESR@10KHz (mΩ) | Partnumber | |||
D | L | L2 | L3 | ||||||
0.10 | 47 | 40 | 62 | 78 | 40 | 1000 | 100 | 21 | 1GRY410D3000-03 |
0.24 | 80 | 40 | 62 | 78 | 80 | 1000 | 240 | 19 | 1GRY424D3000-01 |
0.30 | 45 | 40 | 40 | 1000 | 300 | 16 | 1GRY430D3000-04 | ||
0.30 | 78 | 40 | 62 | 78 | 80 | 1000 | 300 | 16 | 1GRY430D3000-12 |
0.32 | 80 | 40 | 62 | 78 | 80 | 1000 | 320 | 15.5 | 1GRY432D3000-02 |
0.33 | 62 | 40 | 62 | 78 | 60 | 1000 | 330 | 15 | 1GRY433D3000-01 |
0.35 | 80 | 40 | 62 | 78 | 80 | 1000 | 350 | 14 | 1GRY435D3000-08 |
0.44 | 61 | 40 | 62 | 78 | 60 | 1000 | 440 | 10 | 1GRY444D3000-06 |
0.47 | 72 | 40 | 62 | 78 | 80 | 1000 | 470 | 10 | 1GRY447D3000-03 |
0.47 | 57 | 40 | 62 | 78 | 60 | 1000 | 470 | 10 | 1GRY447D3000-05 |
0.50 | 74 | 40 | 62 | 78 | 80 | 1000 | 500 | 9.5 | 1GRY450D3000-10 |
0.50 | 63 | 40 | 62 | 78 | 60 | 1000 | 500 | 9.5 | 1GRY450D3000-11 |
0.60 | 75 | 40 | 62 | 78 | 80 | 1000 | 600 | 8.0 | 1GRY460D3000-06 |
0.70 | 56 | 40 | 62 | 78 | 60 | 1000 | 700 | 7.0 | 1GRY470D3000-04 |
0.70 | 77 | 40 | 62 | 78 | 80 | 1000 | 700 | 7.0 | 1GRY470D3000-10 |
0.75 | 56 | 40 | 62 | 78 | 65 | 1000 | 750 | 6.5 | 1GRY475D3000-03 |
0.75 | 78 | 40 | 62 | 78 | 80 | 1000 | 750 | 6.5 | 1GRY475D3000-07 |
0.80 | 75 | 40 | 62 | 78 | 80 | 1000 | 800 | 6.0 | 1GRY480D3000-06 |
0.90 | 75 | 40 | 62 | 78 | 80 | 1000 | 900 | 5.5 | 1GRY490D3000-07 |
1.0 | 78 | 40 | 62 | 78 | 80 | 1000 | 1000 | 5.0 | 1GRY510D3000-05 |
1.2 | 79 | 40 | 62 | 78 | 80 | 1000 | 1200 | 4.5 | 1GRY512D3000-06 |
1.35 | 74 | 40 | 62 | 78 | 80 | 1000 | 1350 | 3.5 | 1GRY5135D3000-03 |
螺母支架式4 000VDC | |||||||||
Cn (μF) | Dimension(mm) | Irms@70℃@100KHz（A） | dv/dt (V/μs) | Ipeak (A) | ESR@10KHz (mΩ) | Partnumber | |||
D | L | L2 | L3 | ||||||
0.10 | 47 | 40 | 62 | 78 | 40 | 1000 | 100 | 21 | 1GRY410D4000-- |
0.24 | 80 | 40 | 62 | 78 | 80 | 1000 | 240 | 19 | 1GRY424D4000-- |
0.30 | 45 | 40 | 40 | 1000 | 300 | 16 | 1GRY430D4000-- | ||
0.30 | 78 | 40 | 62 | 78 | 80 | 1000 | 300 | 16 | 1GRY430D4000-- |
0.32 | 80 | 40 | 62 | 78 | 80 | 1000 | 320 | 15.5 | 1GRY432D4000-- |
0.33 | 62 | 40 | 62 | 78 | 60 | 1000 | 330 | 15 | 1GRY433D4000-- |
0.35 | 80 | 40 | 62 | 78 | 80 | 1000 | 350 | 14 | 1GRY435D4000-- |
0.44 | 61 | 40 | 62 | 78 | 60 | 1000 | 440 | 10 | 1GRY444D4000-- |
0.47 | 72 | 40 | 62 | 78 | 80 | 1000 | 470 | 10 | 1GRY447D4000-- |
0.47 | 57 | 40 | 62 | 78 | 60 | 1000 | 470 | 10 | 1GRY447D4000-- |
0.50 | 74 | 40 | 62 | 78 | 80 | 1000 | 500 | 9.5 | 1GRY450D4000-- |
0.50 | 63 | 40 | 62 | 78 | 60 | 1000 | 500 | 9.5 | 1GRY450D4000-- |
0.60 | 75 | 40 | 62 | 78 | 80 | 1000 | 600 | 8.0 | 1GRY460D4000-- |
0.70 | 56 | 40 | 62 | 78 | 60 | 1000 | 700 | 7.0 | 1GRY470D4000-- |
0.70 | 77 | 40 | 62 | 78 | 80 | 1000 | 700 | 7.0 | 1GRY470D4000-- |
0.75 | 56 | 40 | 62 | 78 | 65 | 1000 | 750 | 6.5 | 1GRY475D4000-- |
0.75 | 78 | 40 | 62 | 78 | 80 | 1000 | 750 | 6.5 | 1GRY475D4000-- |
0.80 | 75 | 40 | 62 | 78 | 80 | 1000 | 800 | 6.0 | 1GRY480D4000-- |
0.90 | 75 | 40 | 62 | 78 | 80 | 1000 | 900 | 5.5 | 1GRY490D4000-- |
1.0 | 78 | 40 | 62 | 78 | 80 | 1000 | 1000 | 5.0 | 1GRY510D4000-- |
1.2 | 79 | 40 | 62 | 78 | 80 | 1000 | 1200 | 4.5 | 1GRY512D4000-- |
1.35 | 74 | 40 | 62 | 78 | 80 | 1000 | 1350 | 3.5 | 1GRY5135D4000-- |
